Model

LP-EU5002

OPTICAL

Display Device

0.64″ (16:10) 3LCD x 1

Resolution

1,920 x 1200 (WUXGA)

Light Source

Laser

Light Output (Brightness)

5,000 ANSI lumens

Contrast Ratio

500,000:1

Lens

Manual focus, manual zoom x 1.6

Speaker

16W

Lamp Life

Approximately 20,000 Hours

Throw Ratio

1.3 – 2.1 : 1

Diagonal Display Size

30″ – 300″ (76cm – 762cm)

Keystone Correction

H and V: +/- 30º

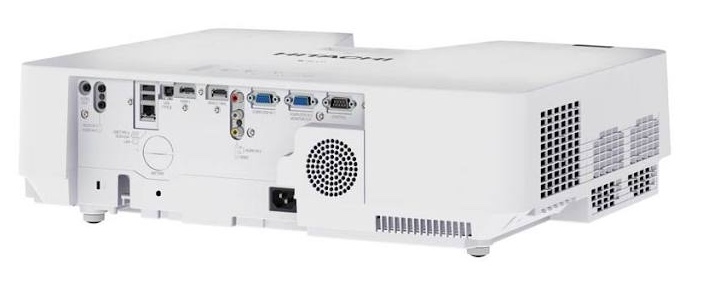

TERMINALS

HDMI In

HDMI (HDCP compliant) x 3 (HDMI 2 supports MHL input)

Computer In

15-pin mini D-sub x 2

Monitor Out

15-pin mini D-sub x 1 (Shared with Computer In 2)

Video Input

RCA connector x 1

Audio Input

3.5mm stereo mini connector x 1, RCA connector L/R x1

Audio Output

3.5mm stereo mini connector x 1

Control In (RS232C)

D-sub 9-pin connector x 1

USB-A

USB type A x 2 (PC Less Presentation or Wireless Adapter)

USB-B

USB type B x 1 (USB display or USB mouse control)

Lan

RJ-45 x 1

POWER & PHYSICAL

Power Requirements

AC 100V – 120V (50/ 60Hz),  3.8A

AC 220V – 240V (50 / 60Hz), 1.9A

Maximum Power Consumption

AC 100V-120V (50/ 60Hz), 360W

AC 220V-240V (50/ 60Hz), 350W

Operating Temperature

0 – 40ºC (10-90%RH)

Dimension of the Product Main Body

(The connecting and protruding part are not included)

512(W) x 152(H) x 424(D)mm

Weight

Approximately 7.5kg
